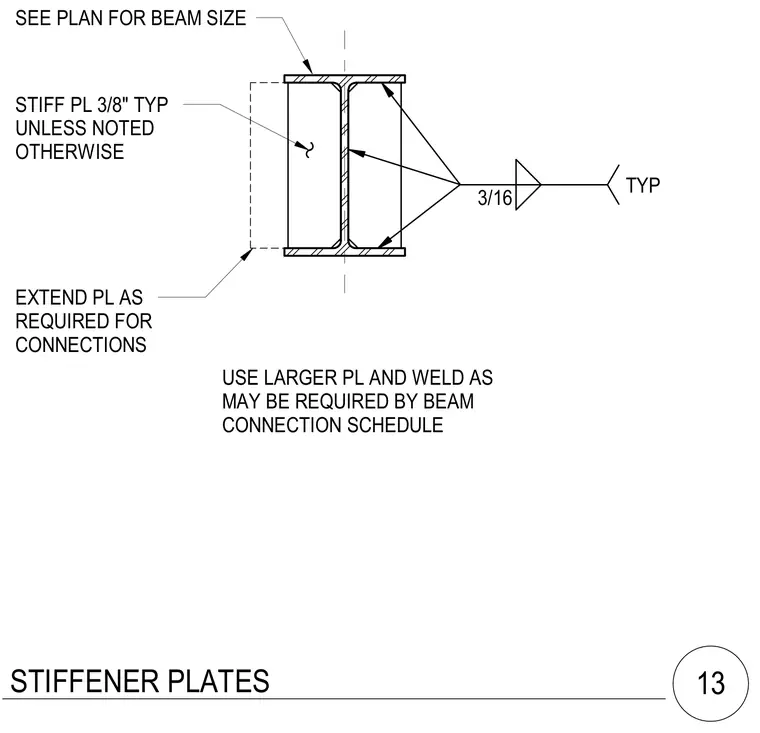

Three-eighths-inch thick stiffener plates are welded to the web and flanges of a steel beam sized per plan. A three-sixteenths-inch fillet weld attaches the stiffener plates typically unless noted otherwise. Plates extend as required for connections and are subject to larger plate and weld sizes when mandated by the beam connection schedule.
USE LARGER PL AND WELD AS MAY BE REQUIRED BY BEAM CONNECTION SCHEDULE EXTEND PL AS REQUIRED FOR CONNECTIONS STIFF PL 3/8" TYP UNLESS NOTED OTHERWISE SEE PLAN FOR BEAM SIZE 3/16 TYP STIFFENER PLATES 13
