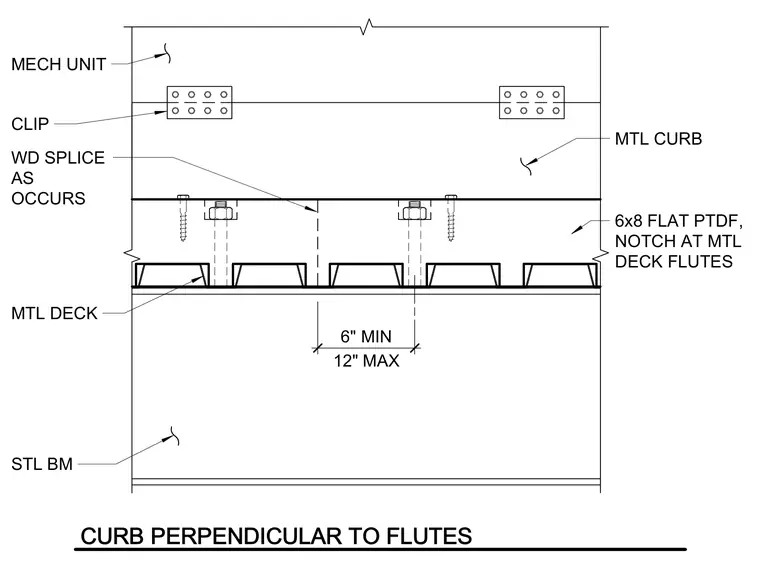

A metal curb supporting a mechanical unit connects perpendicular to the flutes of a metal deck bearing on a steel beam. A six-by-eight flat pressure-treated wood member with notches at the metal deck flutes serves as a wood sill plate. Wood splices occur as needed along the wood member. Fasteners and clips secure the assembly with specified six-inch minimum and twelve-inch maximum spacing.
WD SPLICE AS OCCURS STL BM 6x8 FLAT PTDF, NOTCH AT MTL DECK FLUTES MTL DECK 12" MAX 6" MIN CURB PERPENDICULAR TO FLUTES MTL CURB MECH UNIT CLIP
