An HSS beam connects to the web of a wide flange structural shape using a one-half inch thick plate and matching stiffener plates on each side of the web. Five-sixteenth inch fillet welds join the stiffener plates to the wide flange web along three sides. A complete joint penetration weld secures the plate to the wide flange flange. A closure plate welds the HSS beam to the wide flange flange per standard details. Continuity plate connections for frame HSS beams are referenced separately on sheet two dash S three point one two.

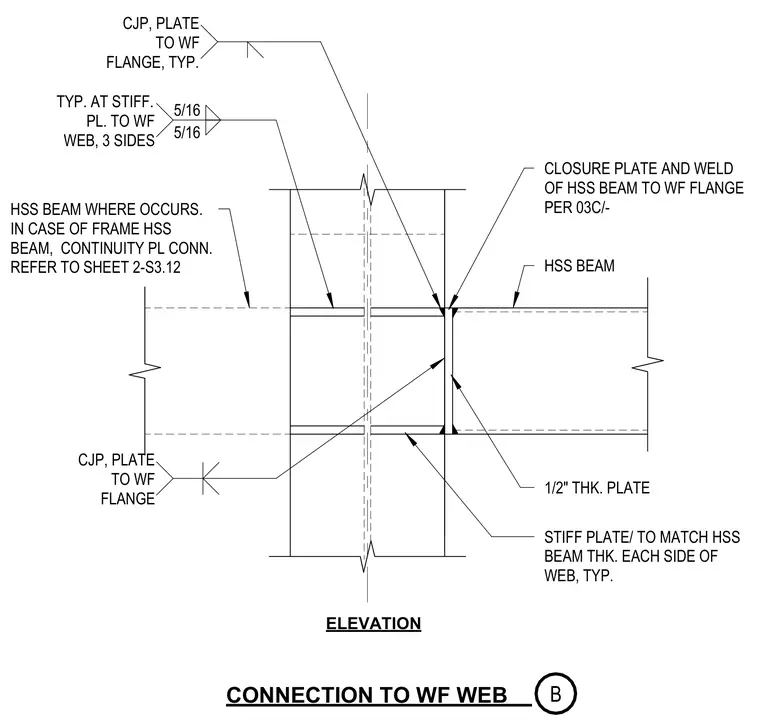

CONNECTION TO WF WEB ELEVATION HSS BEAM STIFF PLATE/ TO MATCH HSS BEAM THK. EACH SIDE OF WEB, TYP. CLOSURE PLATE AND WELD OF HSS BEAM TO WF FLANGE PER 03C/- CJP, PLATE TO WF FLANGE 5/16 5/16 TYP. AT STIFF. PL. TO WF WEB, 3 SIDES CJP, PLATE TO WF FLANGE, TYP. 1/2" THK. PLATE B HSS BEAM WHERE OCCURS. IN CASE OF FRAME HSS BEAM, CONTINUITY PL CONN. REFER TO SHEET 2-S3.12
