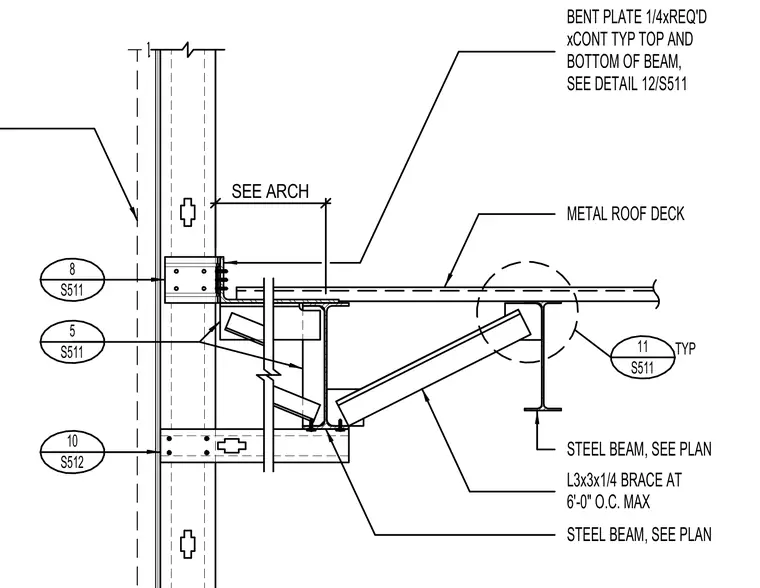

Continuous quarter-inch bent plates are placed at the top and bottom of the steel beam. An L3x3x1/4 angle brace is positioned at six feet on center maximum against the steel beam. A metal roof deck bears over the structural framing.
11 S511 TYP S512 10 S511 5 8 S511 METAL ROOF DECK STEEL BEAM, SEE PLAN L3x3x1/4 BRACE AT 6'-0" O.C. MAX STEEL BEAM, SEE PLAN BENT PLATE 1/4xREQ'D xCONT TYP TOP AND BOTTOM OF BEAM, SEE ARCH SEE DETAIL 12/S511
