Structural · S-X7A4F

Beam Shear Tab Connection with Extended Plate for W8 to W14 Beams

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Shear Tab / Single Plate Bolted Connection Expansion / Slip Connection

About this detail

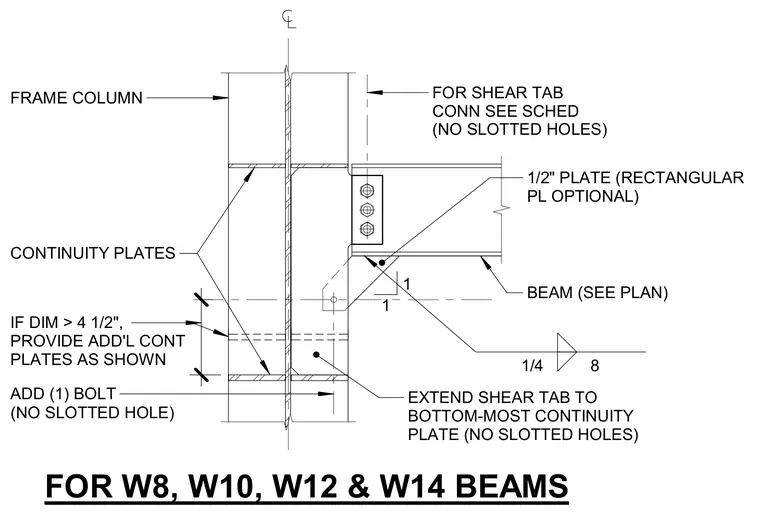

The steel beam frames into the column using a single plate shear tab connection detailed with no slotted holes. For W8, W10, W12, and W14 beams, the shear tab extends downward to the bottom-most continuity plate, which is detailed with a 1/2-inch plate that can optionally be rectangular. Additional continuity plates are provided inside the column web when the dimension exceeds 4-1/2 inches. The connection utilizes unslotted bolts and a one-inch fillet weld configuration as indicated on the drawing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
