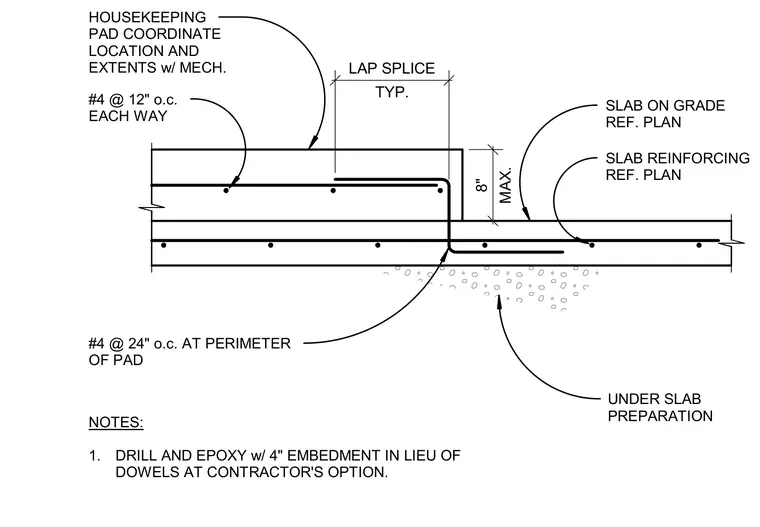

A concrete housekeeping pad sits atop a slab on grade with a maximum height of eight inches, requiring location coordination with mechanical trades. The pad is reinforced with number four bars at twelve inches on center each way, featuring a typical lap splice at the edge. The perimeter of the pad is detailed with number four bars at twenty-four inches on center. Contractors may optionally drill and epoxy dowels with a four-inch embedment in lieu of cast-in dowels.
SLAB REINFORCING REF. PLAN UNDER SLAB PREPARATION MAX. 8" SLAB ON GRADE REF. PLAN #4 @ 12" o.c. EACH WAY HOUSEKEEPING PAD COORDINATE LOCATION AND EXTENTS w/ MECH. #4 @ 24" o.c. AT PERIMETER OF PAD NOTES: 1. DRILL AND EPOXY w/ 4" EMBEDMENT IN LIEU OF DOWELS AT CONTRACTOR'S OPTION. TYP. LAP SPLICE
