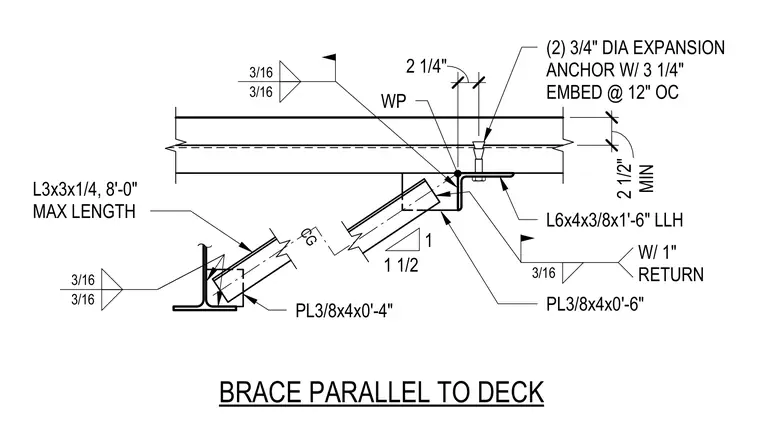

An L3x3x1/4 structural steel angle brace with a maximum length of eight feet connects parallel to the deck. The upper end frames into an L6x4x3/8 by one foot six inch long leg horizontal angle secured with two three-quarter inch diameter expansion anchors having a three and one-quarter inch embedment at twelve inches on center. A three-eighths by four by six inch plate and a three-eighths by four by four inch plate tie the assembly together using three-sixteenths inch fillet welds with one inch returns.
2 1/4" (2) 3/4" DIA EXPANSION ANCHOR W/ 3 1/4" EMBED @ 12" OC L6x4x3/8x1'-6" LLH L3x3x1/4, 8'-0" MAX LENGTH PL3/8x4x0'-6" 3/16 3/16 BRACE PARALLEL TO DECK WP 3/16 3/16 PL3/8x4x0'-4" 1 1/2 1 CG 3" 2 1/2" MIN W/ 1" RETURN 3/16
