Double angle web members connect to the truss bottom chord at a designated working point with specified fillet welds. Angle sizes include L5x5, L4x4, L3-1/2x3-1/2, and L3x3, with weld sizes varying from 3/16 inch to 5/16 inch applied to three sides where applicable. A maximum clearance of 1/2 inch is maintained at member ends, and diagonal bridging is included where required per reference elevations.

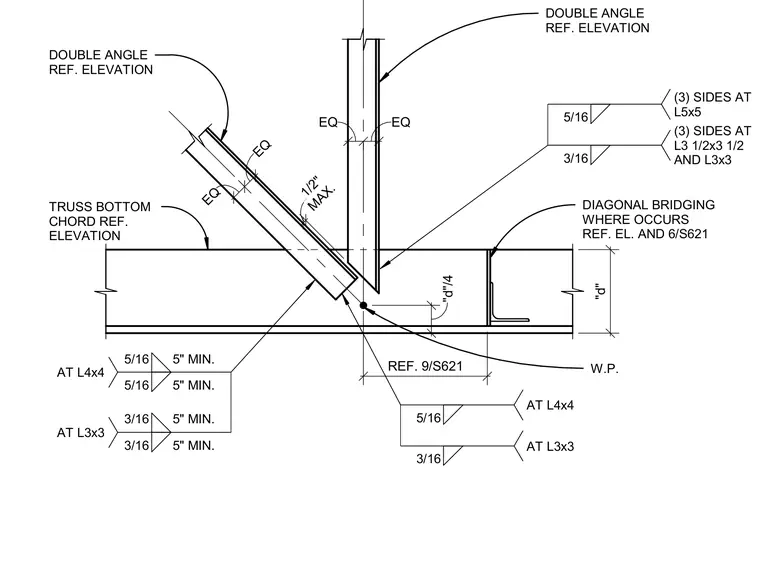

"d" "d"/4 DOUBLE ANGLE REF. ELEVATION TRUSS BOTTOM CHORD REF. ELEVATION W.P. 5/16 AT L4x4 3/16 AT L3x3 5/16 5" MIN. 5/16 5" MIN. AT L4x4 3/16 5" MIN. 3/16 5" MIN. AT L3x3 DOUBLE ANGLE REF. ELEVATION 5/16 (3) SIDES AT L5x5 3/16 (3) SIDES AT L3 1/2x3 1/2 AND L3x3 MAX. 1/2" REF. 9/S621 DIAGONAL BRIDGING WHERE OCCURS REF. EL. AND 6/S621 EQ EQ EQ EQ
