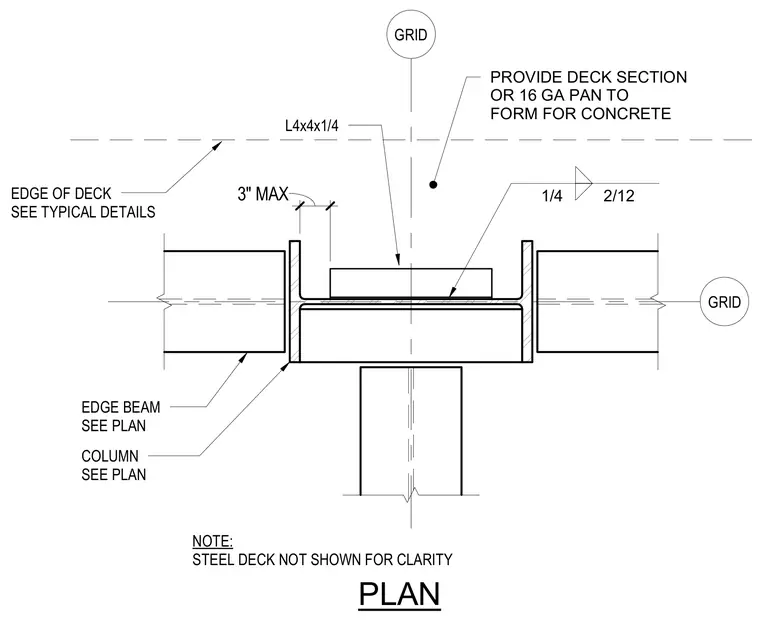

An exterior column connects to an edge beam sized per plan with a maximum three-inch clearance. An L4x4x1/4 angle with a one-quarter inch fillet weld and a two-inch by twelve-inch plate is provided at the column centerline. A sixteen-gauge pan or deck section is specified to form for concrete, with the steel deck omitted for clarity.
GRID GRID PROVIDE DECK SECTION OR 16 GA PAN TO FORM FOR CONCRETE COLUMN SEE PLAN EDGE BEAM SEE PLAN EDGE OF DECK SEE TYPICAL DETAILS L4x4x1/4 1/4 2/12 3" MAX NOTE: STEEL DECK NOT SHOWN FOR CLARITY PLAN
