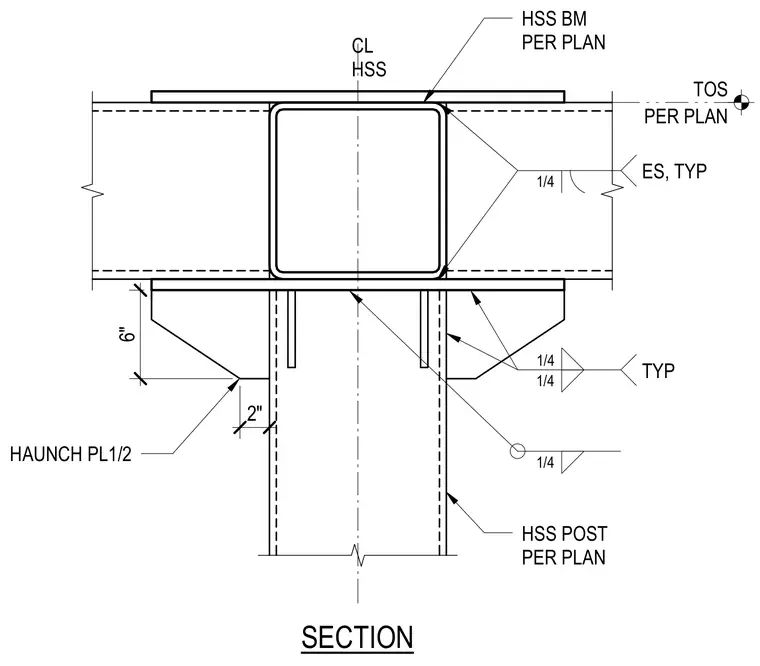

The hollow structural section beam bears on top of the hollow structural section post, stabilized by a half-inch haunch plate welded beneath the connection with one-quarter-inch fillet welds. Additional plate stiffeners are welded to the post and haunch plate. The assembly aligns with the center line of the structural steel members and establishes the top-of-steel elevation as sized per plan.
CL HSS HSS BM PER PLAN PER PLAN TOS ES, TYP 1/4 TYP 1/4 1/4 1/4 HSS POST PER PLAN 2" 6" HAUNCH PL1/2 SECTION
