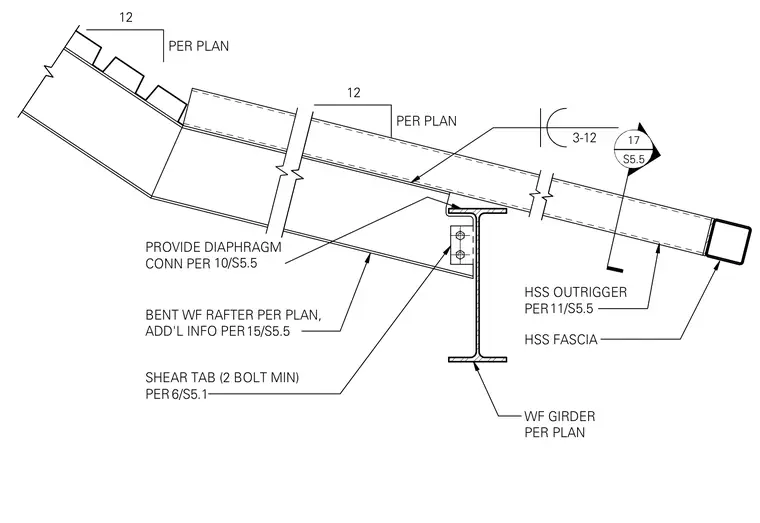

A bent wide flange rafter connects to a supporting wide flange girder using a shear tab with a two-bolt minimum. An HSS outrigger and HSS fascia extend the roof overhang per plan. A diaphragm connection is provided per the structural notes. The assembly frames the roof overhang edge and rafter transition.
HSS FASCIA PER PLAN BENT WF RAFTER PER PLAN, ADD'L INFO PER SHEAR TAB (2 BOLT MIN) PER PROVIDE DIAPHRAGM CONN PER 6/S5.1 10/S5.5 12 HSS OUTRIGGER PER S5.5 17 ____ WF GIRDER PER PLAN PER PLAN 12 3-12 11/S5.5 15/S5.5
