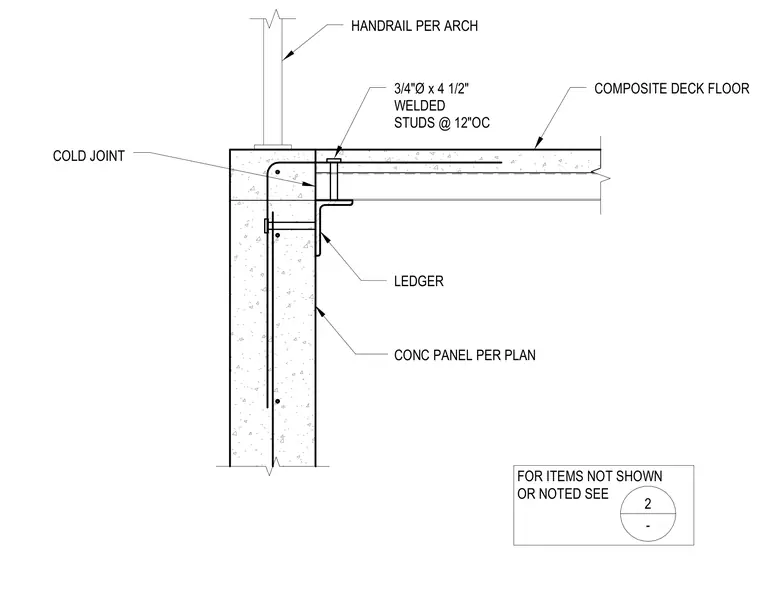

A structural steel ledger angle anchors to a concrete panel per plan to support a composite deck floor. Three-quarter-inch diameter by four-and-one-half-inch long welded studs spaced at twelve inches on center tie the composite deck floor to the assembly. A cold joint is detailed at the intersection of the concrete panel and slab edge. A handrail per architectural drawings mounts directly to the top of the concrete panel.
2 - 3/4"Ø x 4 1/2" WELDED STUDS @ 12"OC COMPOSITE DECK FLOOR HANDRAIL PER ARCH LEDGER CONC PANEL PER PLAN FOR ITEMS NOT SHOWN OR NOTED SEE COLD JOINT
