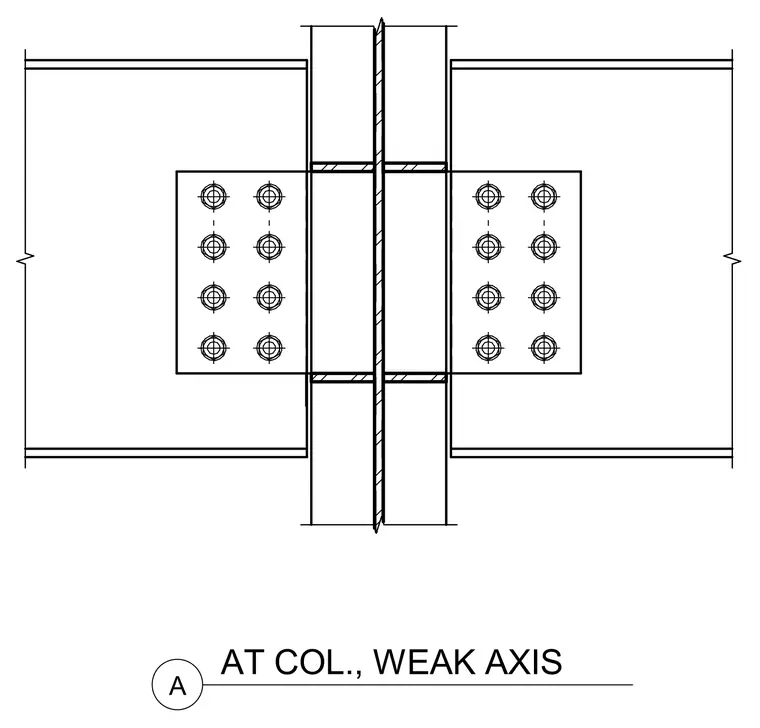

A structural steel beam connects to the weak axis flange of a column using a bolted shear tab on each side. The shear tabs are welded to the column flange and bolted to the web of each framing beam with an eight-bolt arrangement.
