Structural · S-X5PSJ

Column Stiffener Plate Details

Materials

Elements

About this detail

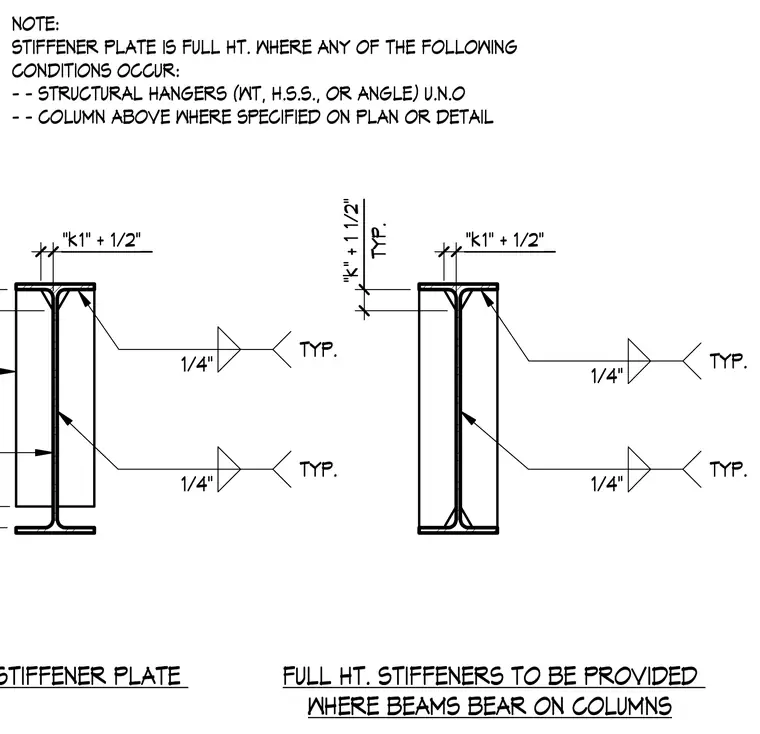

Steel column stiffener plates are detailed with typical one-quarter-inch fillet welds along the web and flange connections. Stiffener plates extend to the full height of the column where structural hangers, such as structural tees, hollow structural sections, or angles, occur unless noted otherwise, and wherever beams bear directly on columns. Dimensions specify sizing relative to the column web and flange dimensions.
