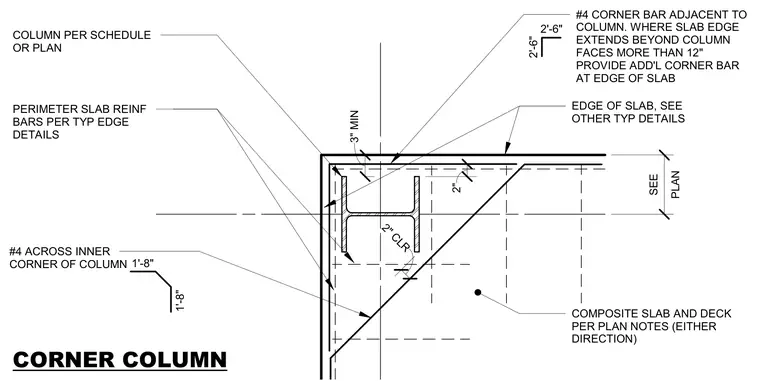

This structural plan detail shows the slab reinforcement layout at a corner column supporting a composite slab and deck. A number 4 corner bar spans across the inner corner of the column with legs extending 1 foot 8 inches. Additional number 4 corner bars measuring 2 feet 6 inches by 2 feet 6 inches are provided at the edge of the slab where the slab edge extends beyond the column faces more than 12 inches. Perimeter slab reinforcing bars follow typical edge details with a 2 inch clearance and a 3 inch minimum spacing. The column is specified per schedule or plan, and the composite slab and deck are installed per plan notes in either direction.
#4 ACROSS INNER CORNER OF COLUMN COLUMN PER SCHEDULE OR PLAN CORNER COLUMN COMPOSITE SLAB AND DECK PER PLAN NOTES (EITHER DIRECTION) EDGE OF SLAB, SEE OTHER TYP DETAILS PERIMETER SLAB REINF BARS PER TYP EDGE DETAILS 1'-8" 1'-8" 3" MIN 2" CLR PLAN SEE #4 CORNER BAR ADJACENT TO COLUMN. WHERE SLAB EDGE EXTENDS BEYOND COLUMN FACES MORE THAN 12" PROVIDE ADD'L CORNER BAR AT EDGE OF SLAB 2" 2'-6" 2'-6"
