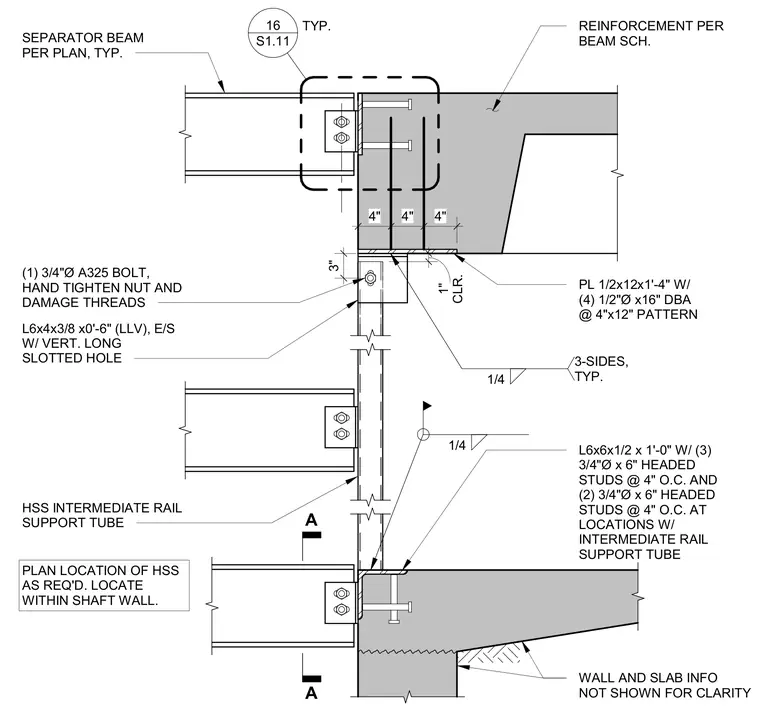

A typical intermediate elevator rail support anchors to structural concrete slabs and separator beams. An HSS intermediate rail support tube spans between slab connections, utilizing an L6x4x3/8 angle with a vertical long slotted hole connected via one three-quarter-inch diameter A325 bolt with a hand-tightened and thread-damaged nut. Plates measuring one-half by twelve by sixteen inches welded with quarter-inch fillet welds on three sides anchor into the concrete slab using four half-inch diameter by sixteen-inch deformed bar anchors in a four-by-twelve-inch pattern. Additional L6x6x1/2 angles welded to the slab edge feature three three-quarter-inch diameter by six-inch headed studs at four inches on center, with two additional headed studs at intermediate rail support tube locations.
REINFORCEMENT PER BEAM SCH. SEPARATOR BEAM PER PLAN, TYP. 4" 4" 4" 3" CLR. 1" PL 1/2x12x1'-4" W/ (4) 1/2"Ø x16" DBA @ 4"x12" PATTERN L6x4x3/8 x0'-6" (LLV), E/S W/ VERT. LONG SLOTTED HOLE L6x6x1/2 x 1'-0" W/ (3) 3/4"Ø x 6" HEADED STUDS @ 4" O.C. AND (2) 3/4"Ø x 6" HEADED STUDS @ 4" O.C. AT LOCATIONS W/ INTERMEDIATE RAIL SUPPORT TUBE WALL AND SLAB INFO NOT SHOWN FOR CLARITY HSS INTERMEDIATE RAIL SUPPORT TUBE (1) 3/4"Ø A325 BOLT, HAND TIGHTEN NUT AND DAMAGE THREADS 1/4 PLAN LOCATION OF HSS AS REQ'D. LOCATE WITHIN SHAFT WALL. 3-SIDES, TYP. 1/4 S1.11 16 TYP. A A
