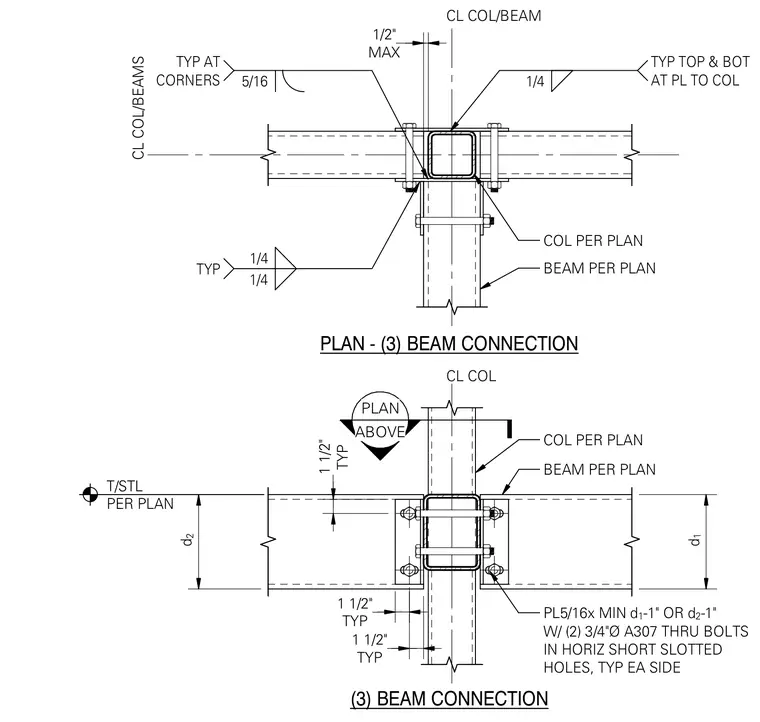

Steel beam-to-column connections frame into a hollow structural section column per plan specifications. The structural connection utilizes a plate sized to the beam depth minus one inch with five-sixteenths inch minimum thickness, secured with two three-quarter inch diameter ASTM A307 through bolts in horizontal short slotted holes on each side. Fillet welds of one-quarter inch size are specified typically at the top and bottom of the plate to the column, with five-sixteenths inch fillet welds typically at corners. A maximum clearance of one-half inch is maintained between the column and beams, with typical clearances of one and one-half inches.
PLAN ABOVE BEAM PER PLAN COL PER PLAN COL PER PLAN 1/4 TYP TOP & BOT AT PL TO COL BEAM PER PLAN PL5/16x MIN d 1 -1" OR d 2 -1" W/ (2) 3/4"Ø A307 THRU BOLTS IN HORIZ SHORT SLOTTED HOLES, TYP EA SIDE (3) BEAM CONNECTION T/STL PER PLAN PLAN - (3) BEAM CONNECTION d 1 d 2 CL COL TYP 1 1/2" TYP 1 1/2" TYP 1 1/2" CL COL/BEAM 1/4 1/4 TYP 5/16 TYP AT CORNERS MAX 1/2" CL COL/BEAMS > < F i 1 3 \ 4 it ; t WT t * > \ 1 fi <0 0 0 E 0 7 r^
