Structural · S-X5AHN

Beam Centered on Column Shear Tab Connection

Elements

Connections

About this detail

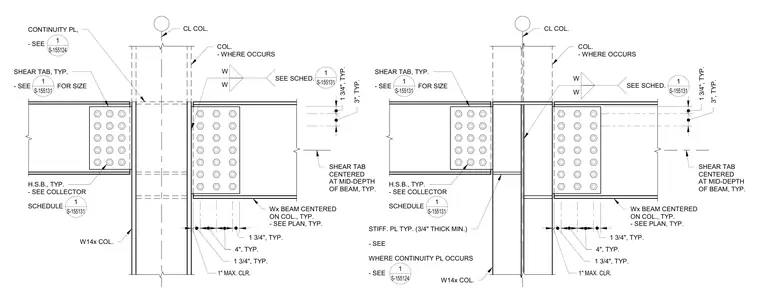

A wide-flange beam centers on a W14x column flange using a bolted shear tab connection. The shear tab is centered vertically at the mid-depth of the beam web, secured with high-strength bolts sized per the collector schedule. Continuity plates and stiffener plates with a minimum thickness of three-quarters of an inch are provided where indicated on the drawings. Maximum clearance between the beam end and the column face is limited to one inch. Weld sizes and plate dimensions are referenced to specific schedule sheets.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
