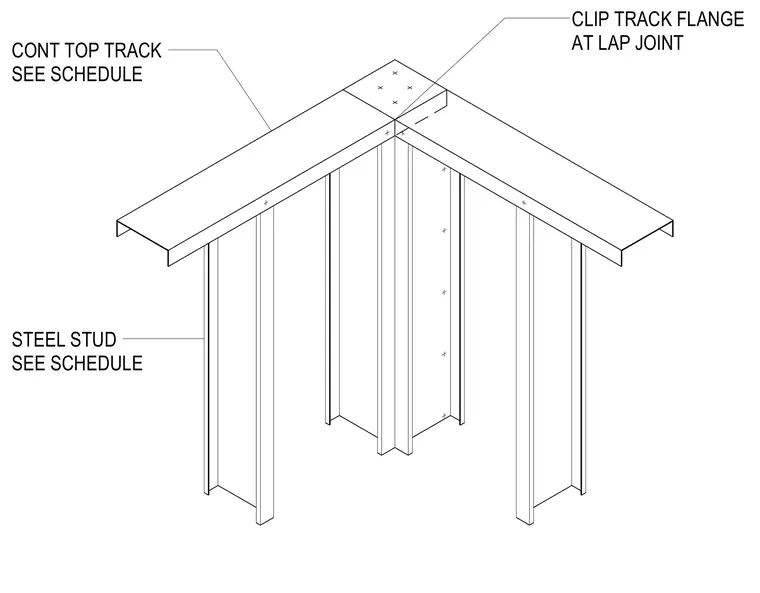

Cold-formed steel studs are positioned at the building corner and sized per schedule. A continuous top track runs across the top of the wall framing. A clip track flange is incorporated at the lap joint to connect the intersecting top tracks.
STEEL STUD SEE SCHEDULE CLIP TRACK FLANGE AT LAP JOINT CONT TOP TRACK SEE SCHEDULE
