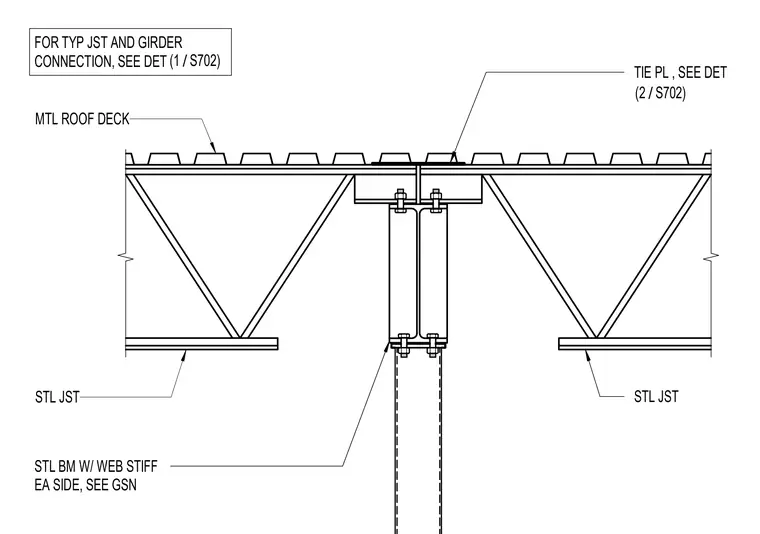

Steel joists bear upon a structural steel beam supported by a steel column with web stiffeners on each side. A metal roof deck spans across the top chords of the joists. A tie plate bridges the deck above the column connection point.
STL JST MTL ROOF DECK STL JST FOR TYP JST AND GIRDER CONNECTION, SEE DET / (1 S702) TIE PL , SEE DET / (2 S702) STL BM W/ WEB STIFF EA SIDE, SEE GSN
