An L2x2x3/16 angle is attached to each flange at the slab edge, with edge forms sized per Table K.1 maintaining a three-sixteenths inch minimum clearance. Closure plates are held back up to a half-inch to accommodate welds at the column web and flanges. Configurations are provided for columns with webs parallel and perpendicular to the slab edge.

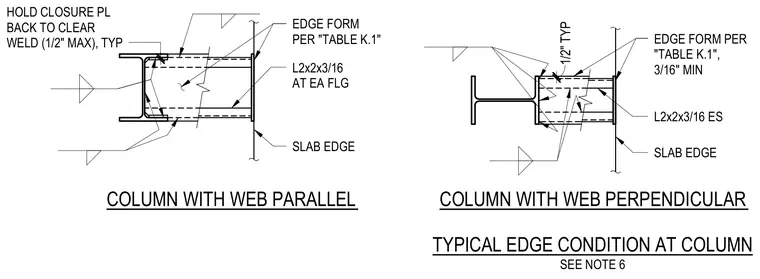

L2x2x3/16 ES EDGE FORM PER "TABLE K.1", 3/16" MIN SLAB EDGE EDGE FORM PER "TABLE K.1" L2x2x3/16 AT EA FLG TYPICAL EDGE CONDITION AT COLUMN COLUMN WITH WEB PARALLEL COLUMN WITH WEB PERPENDICULAR SLAB EDGE SEE NOTE 6 1/2" HOLD CLOSURE PL BACK TO CLEAR WELD (1/2" MAX), TYP 1/2" TYP
