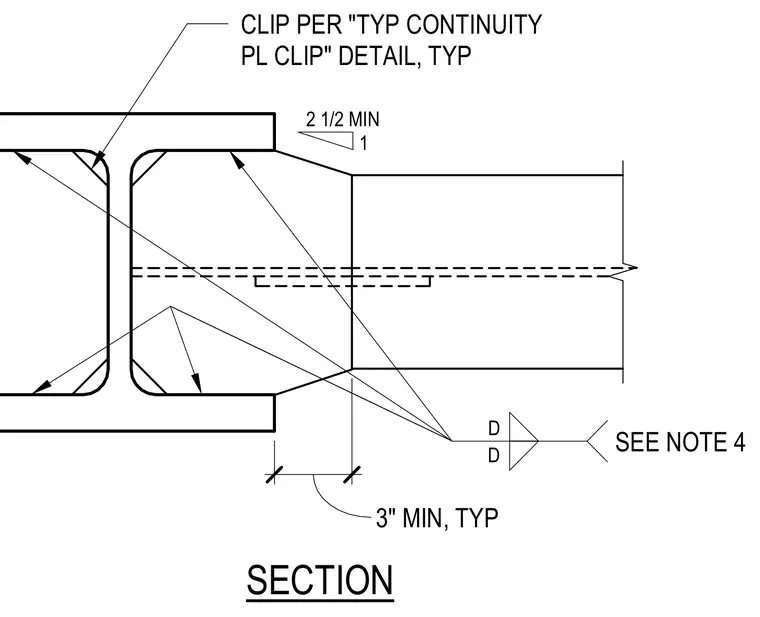

This structural steel detail shows a welded moment connection between a framing member and a wide flange column. Continuity plate clips are detailed typically at the web-flange junctions with a slope transition of two and one-half to one. Welds are specified by note references with a minimum three-inch dimension shown.
SEE NOTE 4 D D 4" 3" MIN, TYP CLIP PER "TYP CONTINUITY PL CLIP" DETAIL, TYP 2 1/2 MIN 1 SECTION
