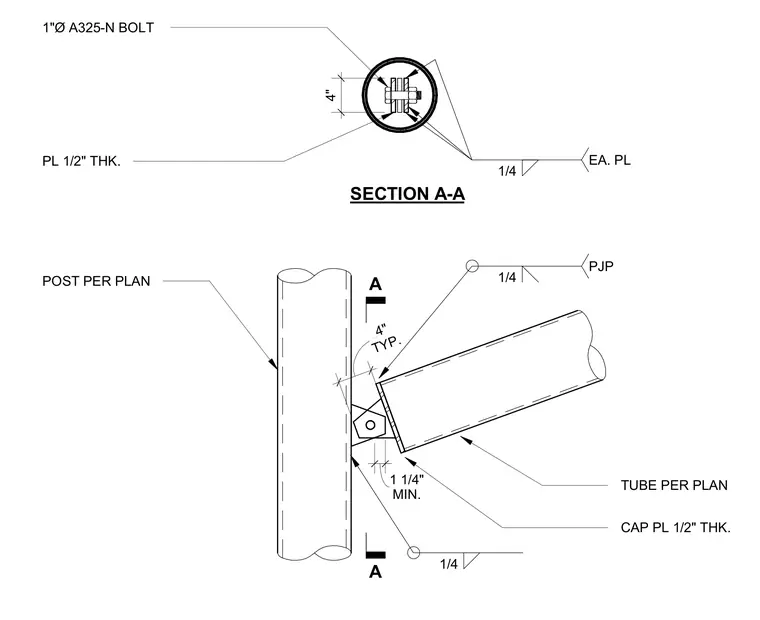

A structural steel tube beam connects to a vertical post per plan using a half-inch thick cap plate welded with a partial joint penetration weld and quarter-inch fillet welds. A one-inch diameter A325-N bolt secures the internal connection plate assembly within the four-inch typical dimension. A quarter-inch fillet weld connects each plate at the joints as detailed in section A-A.
POST PER PLAN CAP PL 1/2" THK. TYP. 4" MIN. 1 1/4" TUBE PER PLAN SECTION A-A A A PJP 1/4 1/4 4" PL 1/2" THK. 1"Ø A325-N BOLT EA. PL 1/4
