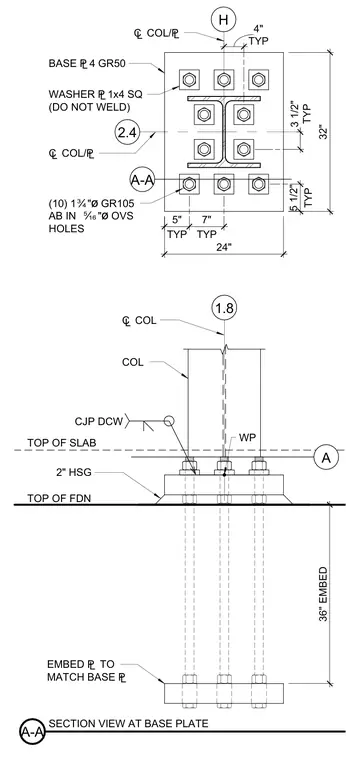

A structural steel column connects to a thick grade fifty base plate anchored by ten one-and-three-quarter-inch diameter Grade one-hundred-and-five anchor bolts set in five-sixteenth-inch oversized holes. Square washer plates are placed over the anchor bolts and left unwelded. The column flange is welded to the base plate using a complete joint penetration double-bevel weld. The assembly bears on a two-inch high-strength grout layer above the top of the foundation. An embedment plate matching the base plate profile is tied to the anchor bolts thirty-six inches below the foundation top.
WP COL ¢ COL A CJP DCW EMBED £ TO MATCH BASE £ 1.8 2" HSG TOP OF SLAB TOP OF FDN H 2.4 36" EMBED (10) 1Ó"ø GR105 AB IN Ì"ø OVS HOLES WASHER £1x4 SQ (DO NOT WELD) BASE £4 GR50 32" 24" TYP 5 1/2" TYP 5" TYP 7" TYP 4" TYP 3 1/2" ¢ COL/£ ¢ COL/£ SECTION VIEW AT BASE PLATE A-A A-A
