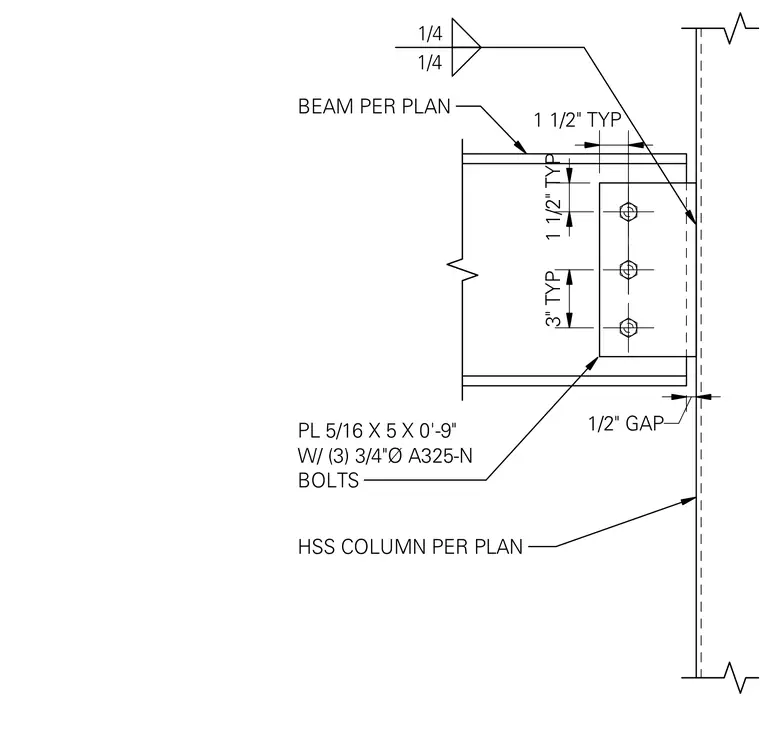

A channel beam connects to a hollow structural section column using a welded plate and three bolts. The connection utilizes a five-sixteenths by five-inch by nine-inch plate welded to the column with a quarter-inch fillet weld. Three three-quarter-inch-diameter A325-N bolts secure the beam web to the plate with standard three-inch vertical spacing. A half-inch gap is maintained between the beam end and the column face.
1/4 1/4 HSS COLUMN PER PLAN 1/2" GAP PL 5/16 X 5 X 0'-9" W/ (3) 3/4"Ø A325-N BOLTS 1 1/2" TYP 1 1/2" TYP 3" TYP BEAM PER PLAN
