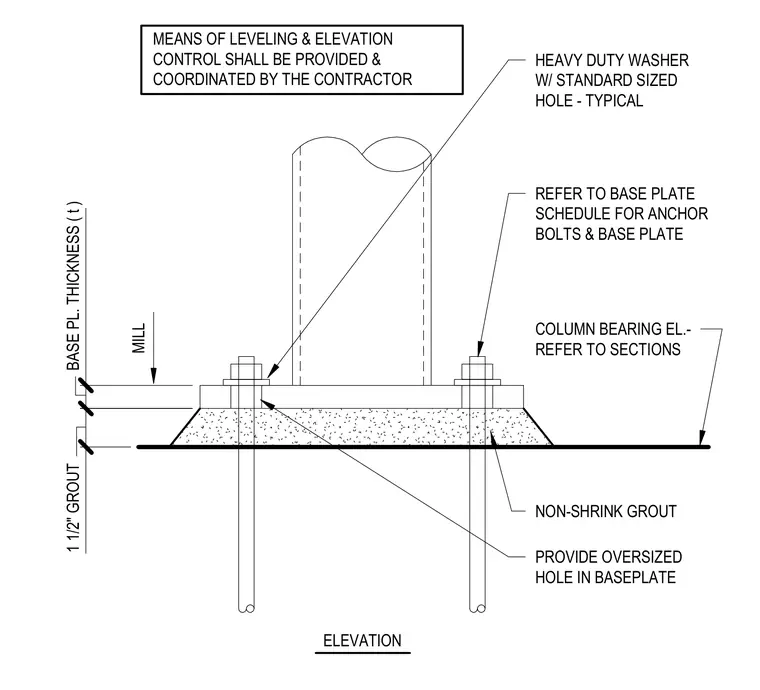

A structural steel column bears on a steel base plate with a thickness specified per design, set over a layer of non-shrink grout. Anchor bolts embedded in the concrete foundation secure the plate using heavy duty washers with standard-sized holes over oversized holes in the base plate. The contractor provides and coordinates means of leveling and elevation control. Column bearing elevations and specific anchor bolt sizes are referenced on the structural drawings and schedules.
MILL ELEVATION HEAVY DUTY WASHER W/ STANDARD SIZED HOLE - TYPICAL REFER TO BASE PLATE SCHEDULE FOR ANCHOR BOLTS & BASE PLATE NON-SHRINK GROUT PROVIDE OVERSIZED HOLE IN BASEPLATE COLUMN BEARING EL.- REFER TO SECTIONS BASE PL. THICKNESS ( t ) 1 1/2" GROUT MEANS OF LEVELING & ELEVATION CONTROL SHALL BE PROVIDED & COORDINATED BY THE CONTRACTOR
