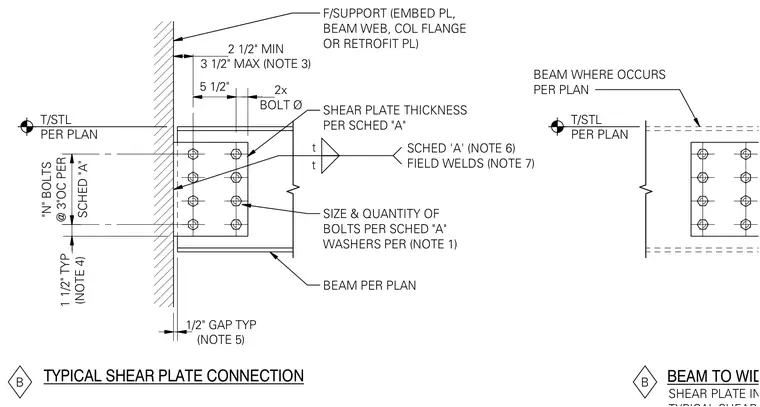

This structural steel connection details a typical shear plate framing a beam to a wide flange column flange. A shear plate of thickness determined per schedule is shop welded to the column flange or supporting element, with field welds joining the plate to the supported beam web. A vertical line of bolts spaced at three inches on center secures the beam web to the shear plate, accompanied by washers as required. A typical one-half inch gap is maintained between the beam end and the column face. Bolt sizing, spacing, and quantities conform to project schedule parameters.
SHEAR PLATE THICKNESS PER SCHED "A" SIZE & QUANTITY OF BOLTS PER SCHED "A" WASHERS PER (NOTE 1) BEAM PER PLAN TYPICAL SHEAR PLATE CONNECTION BEAM TO WIDE FLANGE COLUMN FLANGE SHEAR PLATE INFORMATION PER BEAM WHERE OCCURS PER PLAN t t SCHED 'A' (NOTE 6) FIELD WELDS (NOTE 7) SCHED "A" "N" BOLTS @ 3"OC PER F/SUPPORT (EMBED PL, BEAM WEB, COL FLANGE OR RETROFIT PL) 5 1/2" BOLT Ø 2x (NOTE 4) 1 1/2" TYP 3 1/2" MAX (NOTE 3) 2 1/2" MIN T/STL PER PLAN T/STL PER PLAN (NOTE 5) 1/2" GAP TYP B B
