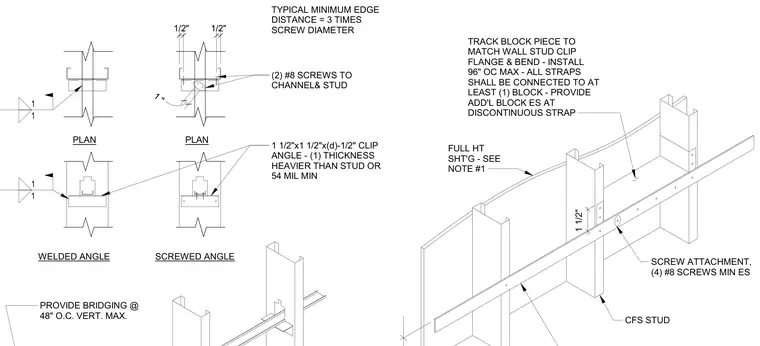

Cold-formed steel stud walls incorporate horizontal bridging spaced at forty-eight inches on center vertically maximum, secured with either welded or screwed clip angles measuring one and a half by one and a half inches with a thickness one gauge heavier than the stud or fifty-four mil minimum. Strap connections require four number eight screws minimum each side, tied to track blocking pieces that match the wall stud clip flange and bend at ninety-six inches on center maximum. All straps connect to at least one block, with additional blocking provided each side at discontinuous strap locations. Minimum edge distance equals three times the screw diameter, with two number eight screws fastening to the channel and stud.
FLANGE, TYP WELDED ANGLE SCREWED ANGLE SCREW ATTACHMENT, (4) #8 SCREWS MIN ES PROVIDE BRIDGING @ 48" O.C. VERT. MAX. CFS STUD PLAN PLAN 1 1/2"x1 1/2"x(d)-1/2" CLIP ANGLE - (1) THICKNESS HEAVIER THAN STUD OR 54 MIL MIN TYPICAL MINIMUM EDGE DISTANCE = 3 TIMES SCREW DIAMETER (2) #8 SCREWS TO CHANNEL& STUD TRACK BLOCK PIECE TO MATCH WALL STUD CLIP FLANGE & BEND - INSTALL 96" OC MAX - ALL STRAPS SHALL BE CONNECTED TO AT LEAST (1) BLOCK - PROVIDE ADD'L BLOCK ES AT DISCONTINUOUS STRAP FULL HT SHT'G - SEE NOTE #1 1 1/2" 1 1 1 1 1/2" 1/2" 1 "
