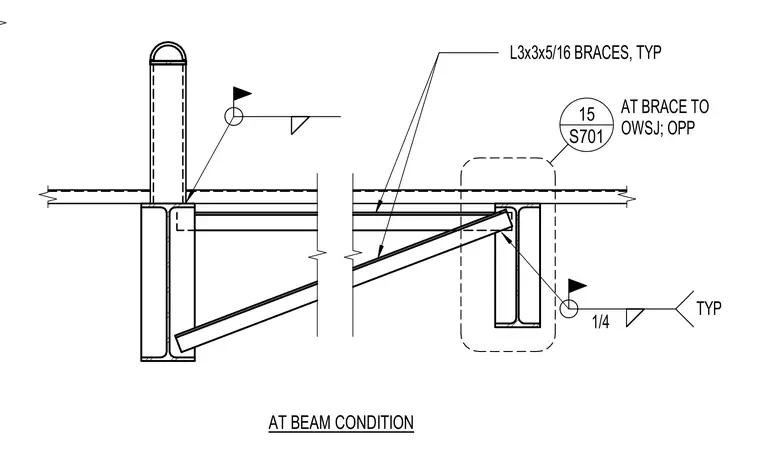

L3x3x5/16 angle braces connect diagonally to the structural framing with typical one-quarter inch fillet welds. Field weld symbols with field-weld flags indicate the installation requirements for the brace members. The assembly ties into the beam condition with referenced details linking to sheet S701.
