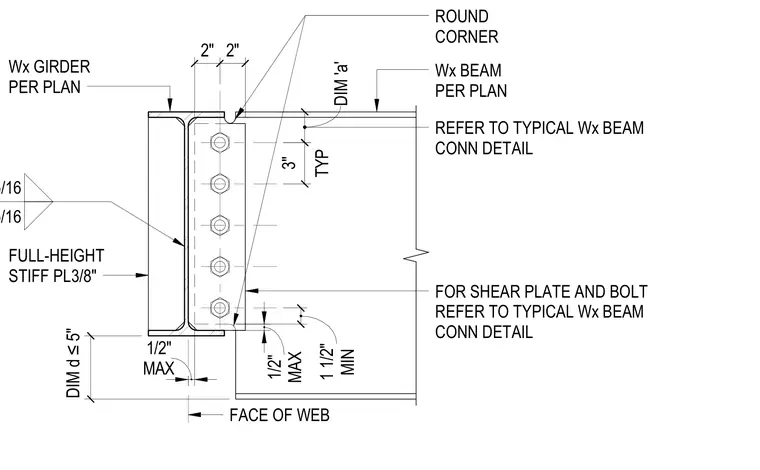

A wide-flange beam frames into a wide-flange girder at an offset elevation, utilizing a bolted shear plate connection to the girder web. A full-height three-eighths-inch thick stiffener plate is welded to the girder web with five-sixteenths-inch fillet welds on each face. The top flange of the supported beam is notched with a rounded corner detail to accommodate the vertical step-up, maintaining a maximum one-half-inch offset from the face of the girder web. Shear plate and bolt sizes are sized per typical wide-flange beam connection details.
FOR SHEAR PLATE AND BOLT REFER TO TYPICAL Wx BEAM CONN DETAIL MAX 1/2" 2" 2" DIM d ≤ 5" Wx GIRDER PER PLAN Wx BEAM PER PLAN ROUND CORNER FULL-HEIGHT STIFF PL3/8" REFER TO TYPICAL Wx BEAM CONN DETAIL MAX 1/2" MIN 1 1/2" 5/16 5/16 FACE OF WEB TYP 3" DIM 'a'
