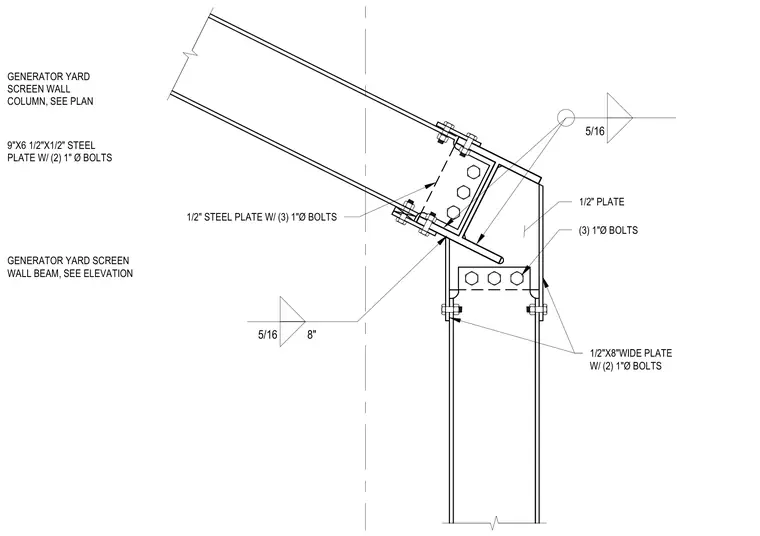

A structural steel corner connection joins the generator yard screen wall column and beam using welded steel plates and high-strength bolts. A nine-inch by six-and-a-half-inch by half-inch steel plate with two one-inch diameter bolts connects the framing components. Additional half-inch steel plates secured with three one-inch diameter bolts provide joint rigidity, supplemented by a half-inch by eight-inch wide plate with two one-inch diameter bolts. Fillet welds of five-sixteenths inch size tie the plates to the structural members.
GENERATOR YARD SCREEN WALL COLUMN, SEE PLAN GENERATOR YARD SCREEN WALL BEAM, SEE ELEVATION 9"X6 1/2"X1/2" STEEL PLATE W/ (2) 1" Ø BOLTS 5/16 8" 1/2"X8"WIDE PLATE W/ (2) 1"Ø BOLTS 1/2" PLATE 5/16 (3) 1"Ø BOLTS 1/2" STEEL PLATE W/ (3) 1"Ø BOLTS
