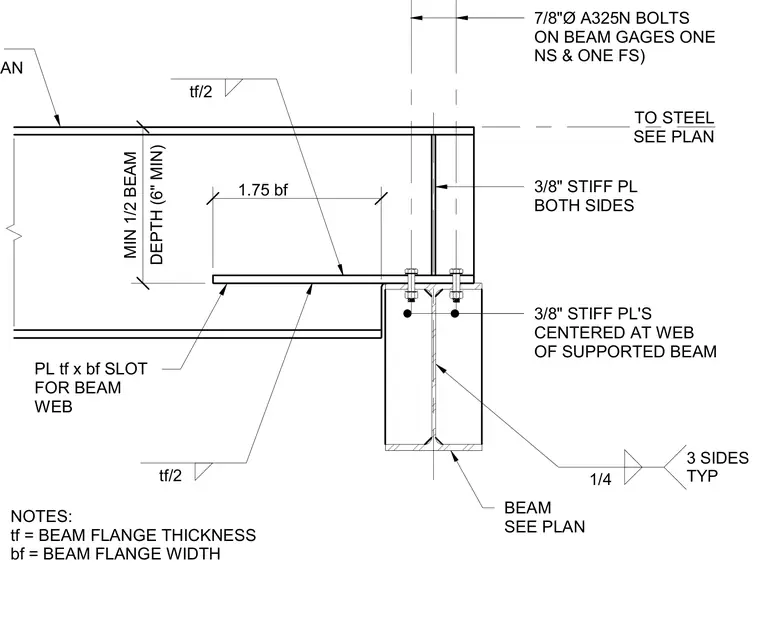

The supported steel beam frames into a supporting steel beam via a seated connection. A plate matching the beam flange thickness and width is slotted to receive the beam web, extending a minimum depth of six inches with a horizontal distance of 1.75 times the flange width. Three-eighths-inch stiffener plates are centered at the web of the supported beam on both sides and welded with quarter-inch fillet welds on three sides typically. Seven-eighths-inch diameter A325N bolts secure the connection on beam gauges, with one near-side and one far-side bolt. The supporting beam web includes three-eighths-inch stiffener plates on both sides.
NOTES: tf = BEAM FLANGE THICKNESS bf = BEAM FLANGE WIDTH PL tf x bf SLOT FOR BEAM WEB BEAM SEE PLAN TO STEEL SEE PLAN SEE PLAN 3/8" STIFF PL'S CENTERED AT WEB OF SUPPORTED BEAM 3/8" STIFF PL BOTH SIDES 7/8"Ø A325N BOLTS ON BEAM GAGES ONE NS & ONE FS) 1.75 bf tf/2 DEPTH (6" MIN) MIN 1/2 BEAM 1/4 3 SIDES TYP tf/2
