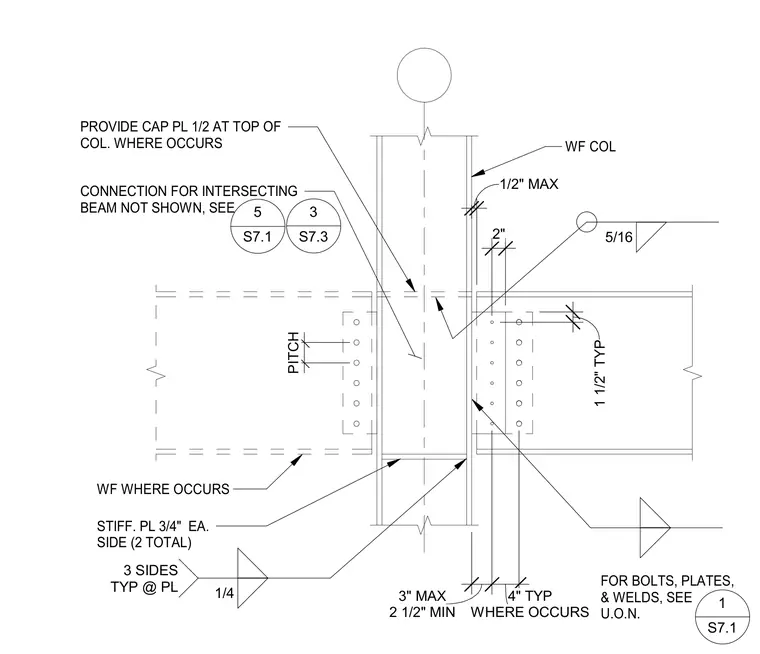

A wide flange beam frames into the flange of a wide flange column, reinforced with 3/4-inch stiffener plates on each side for a total of two. The stiffener plates are welded to the column with 1/4-inch fillet welds on three sides typically. A 1/2-inch cap plate is provided at the top of the column where required. Bolted connections and associated plates and welds are detailed further per structural notes.
5/16 2 1/2" MIN 3" MAX WHERE OCCURS 4" TYP 1 1/2" TYP 1/2" MAX 2" PITCH WF COL PROVIDE CAP PL 1/2 AT TOP OF COL. WHERE OCCURS CONNECTION FOR INTERSECTING BEAM NOT SHOWN, SEE 5 S7.1 WF WHERE OCCURS FOR BOLTS, PLATES, & WELDS, SEE U.O.N. 1 S7.1 STIFF. PL 3/4" EA. SIDE (2 TOTAL) 1/4 3 SIDES TYP @ PL 3 S7.3
