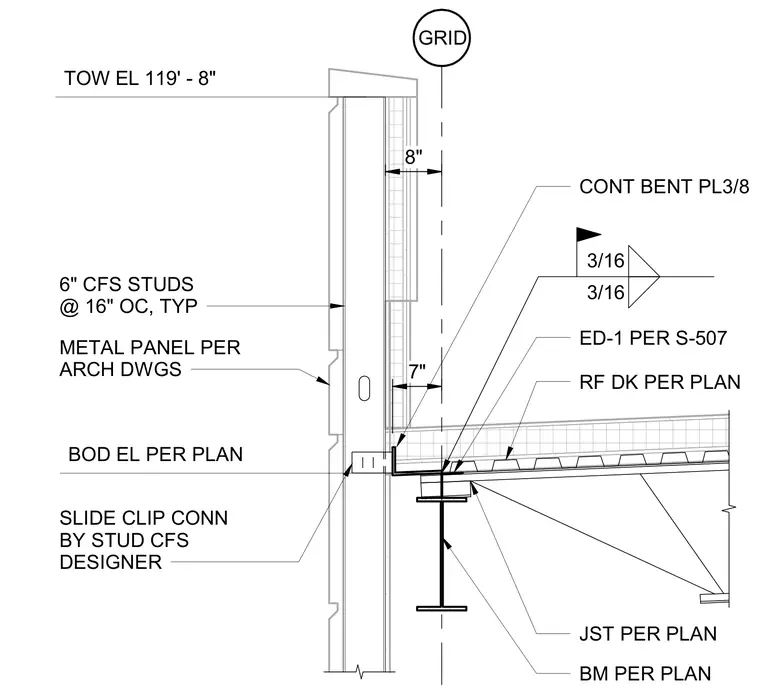

Six-inch cold-formed steel studs spaced at sixteen inches on center support exterior metal panels per architectural drawings. A continuous three-eighths-inch bent plate connects to the roof deck per plan above a structural steel beam and joist. A slide clip connection is provided by the cold-formed steel designer at the floor level. Three-sixteenths-inch welds secure the steel elements.
8" 3/16 3/16 7" 6" CFS STUDS @ 16" OC, TYP METAL PANEL PER ARCH DWGS JST PER PLAN BM PER PLAN RF DK PER PLAN CONT BENT PL3/8 SLIDE CLIP CONN BY STUD CFS DESIGNER GRID BOD EL PER PLAN 115' - 2 1/2" TOW EL 119' - 8" ED-1 PER S-507
