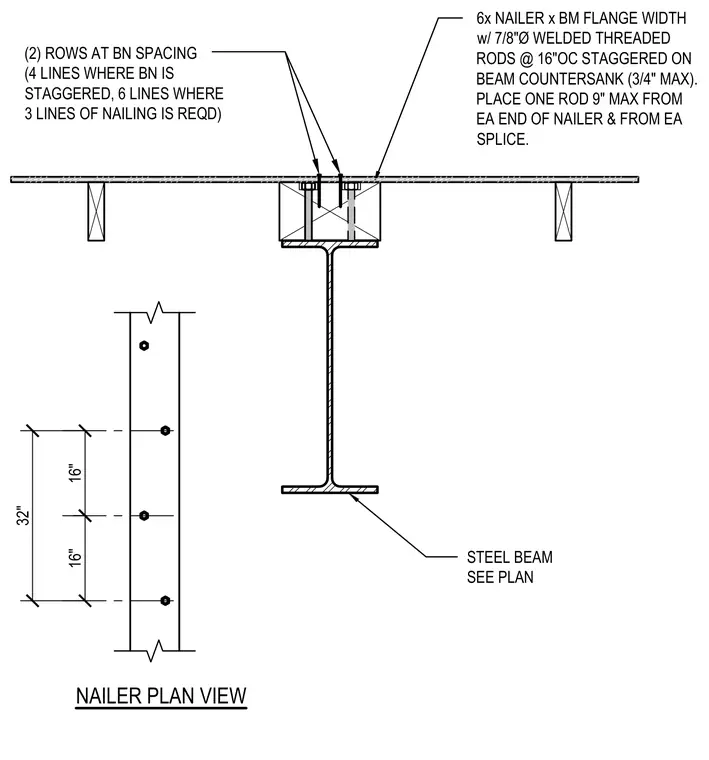

A wood nailer matching the beam flange width is fastened to the top flange of a structural steel beam. Seven-eighths-inch diameter welded threaded rods are spaced at sixteen inches on center, staggered across the beam with a maximum three-quarter-inch countersink. Individual rods are positioned a maximum of nine inches from each end of the nailer and from each splice. Two rows of nailing are arranged at specified nail spacing.
6x NAILER x BM FLANGE WIDTH w/ 7/8"Ø WELDED THREADED RODS @ 16"OC STAGGERED ON BEAM COUNTERSANK (3/4" MAX). PLACE ONE ROD 9" MAX FROM EA END OF NAILER & FROM EA SPLICE. STEEL BEAM SEE PLAN 16" 16" 32" NAILER PLAN VIEW (2) ROWS AT BN SPACING (4 LINES WHERE BN IS STAGGERED, 6 LINES WHERE 3 LINES OF NAILING IS REQD)
