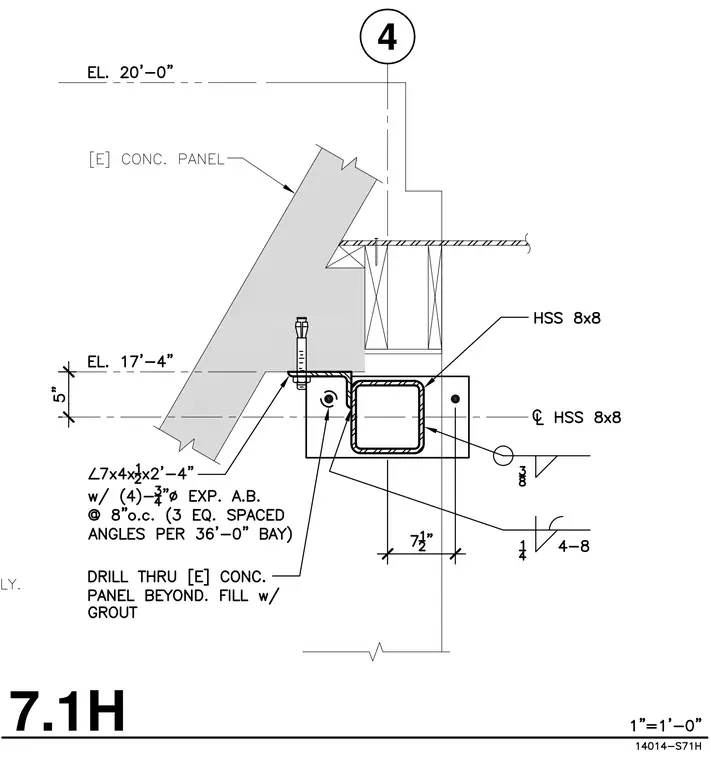

An existing concrete panel bears against a hollow structural section supported by a clip angle fastened with expansion anchors. The connection incorporates an angle bracket secured with four three-quarter-inch diameter expansion anchor bolts spaced at eight inches on center. The hollow structural section member is welded with fillet welds as indicated on the drawing. Field operations require drilling through the existing concrete panel beyond and filling the void with grout.
