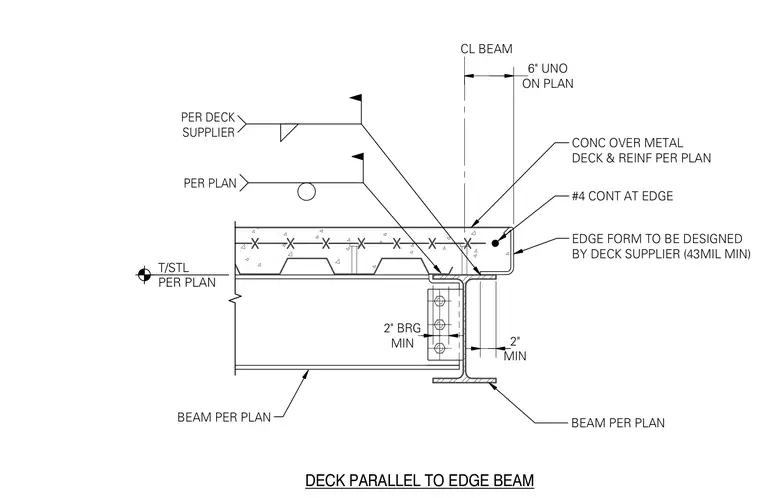

A composite metal deck spans over a structural steel edge beam sized per plan with a minimum 2 inch bearing. Concrete over metal deck includes a continuous number 4 reinforcing bar at the edge and reinforcing per plan. An edge form of 43 mil minimum is designed by the deck supplier. Shear studs are welded through the metal deck to the top flange of the beam per the deck supplier and structural plans.
EDGE FORM TO BE DESIGNED BY DECK SUPPLIER (43MIL MIN) #4 CONT AT EDGE CONC OVER METAL DECK & REINF PER PLAN PER DECK SUPPLIER DECK PARALLEL TO EDGE BEAM BEAM PER PLAN PER PLAN ON PLAN 6" UNO BEAM PER PLAN CL BEAM MIN 2" MIN 2" BRG T/STL PER PLAN
