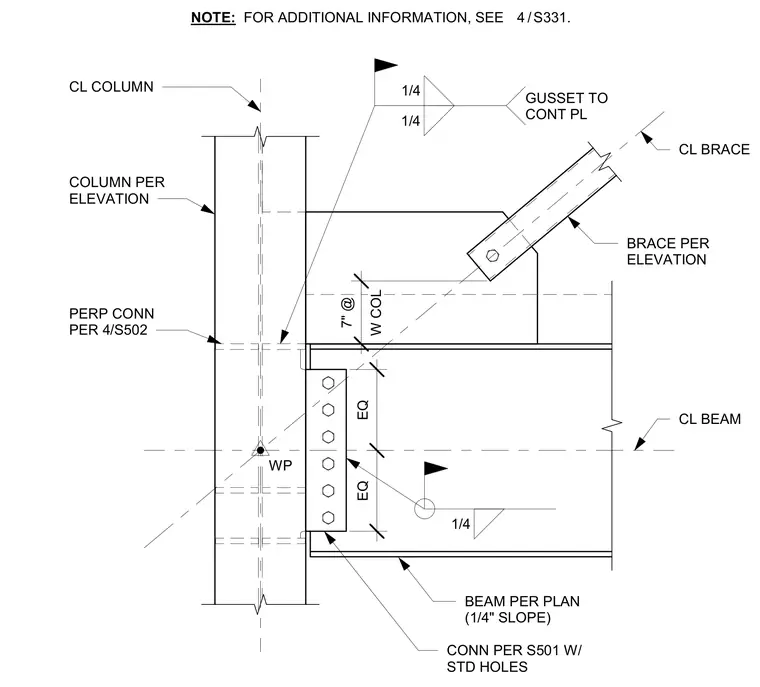

A structural steel braced frame connection featuring a diagonal brace framing into a wide-flange column and beam intersection. The diagonal brace connects to a gusset plate welded to a continuous plate with quarter-inch fillet welds. The beam frames into the column with standard holes and standard connection details per sheet S501. A work point is established at the intersection of the column and beam centerlines, with additional information referenced on sheet S331.
BEAM PER PLAN (1/4" SLOPE) COLUMN PER ELEVATION CL BRACE BRACE PER ELEVATION WP CL BEAM CL COLUMN CONN PER S501 W/ STD HOLES 1/4 1/4 GUSSET TO CONT PL PERP CONN PER 4/S502 EQ EQ W COL 7" @ NOTE: FOR ADDITIONAL INFORMATION, SEE . / 4 S331 1/4
