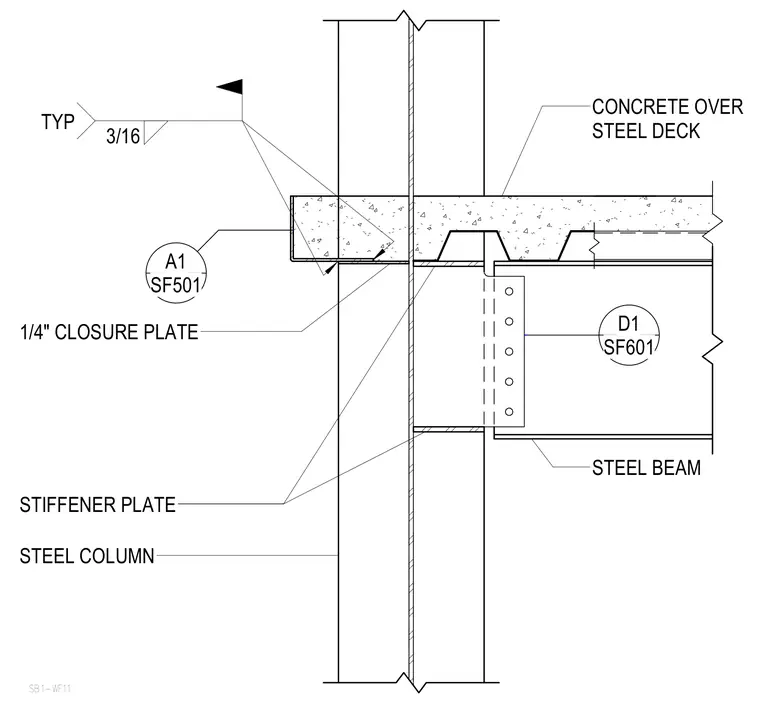

A wide-flange steel beam frames into a steel column using a bolted shear tab connection. A concrete slab over a steel deck bears on the top flange of the beam and interfaces with the column flange. A one-quarter inch closure plate is positioned below the slab edge, secured with three-sixteenths inch fillet welds typical. Stiffener plates are welded to the steel column web aligned with the beam flanges.
SB1-WF11 STIFFENER PLATE STEEL COLUMN STEEL BEAM CONCRETE OVER STEEL DECK 3/16 TYP 1/4" CLOSURE PLATE SF601 D1 SF501 A1
