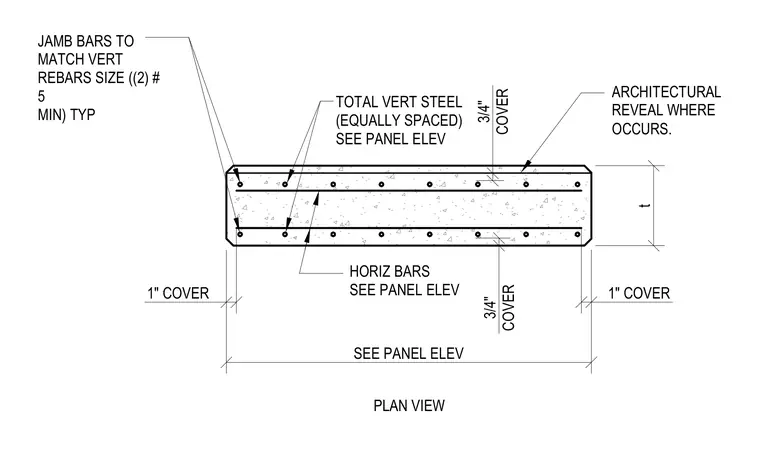

A double layer of wall reinforcing is integrated within a concrete wall assembly. The wall contains total vertical steel equally spaced per the panel elevation, alongside horizontal bars positioned across the section. Jamb bars match the vertical rebar size with a minimum of two number five bars typical at each jamb. Concrete cover is maintained at three-quarters of an inch on the interior face and one inch at the exterior face and ends. Architectural reveals are incorporated where indicated, and wall thickness is designated as t.
t SEE PANEL ELEV 1" COVER 1" COVER 3/4" COVER 3/4" COVER PLAN VIEW ARCHITECTURAL REVEAL WHERE OCCURS. TOTAL VERT STEEL (EQUALLY SPACED) SEE PANEL ELEV HORIZ BARS SEE PANEL ELEV JAMB BARS TO MATCH VERT REBARS SIZE ((2) # 5 MIN) TYP
