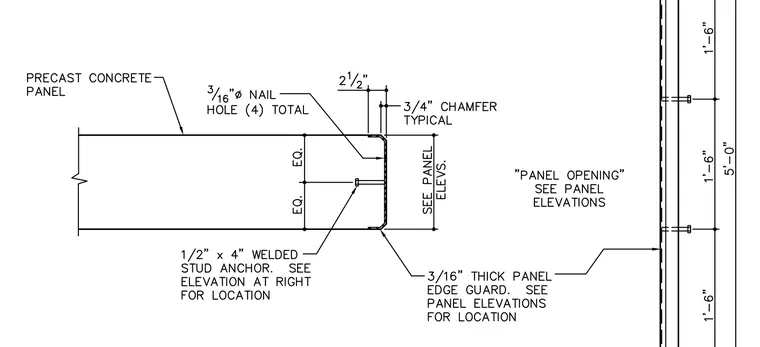

A precast concrete panel features a three-sixteenths-inch thick panel edge guard along its perimeter with typical three-quarter-inch chamfers. A half-inch by four-inch welded stud anchor is embedded centrally in the panel edge, with its location coordinated per panel elevations. The edge guard includes a three-sixteenths-inch diameter nail hole with four total per location. Panel openings are dimensioned relative to the panel edge as shown in the elevations.
