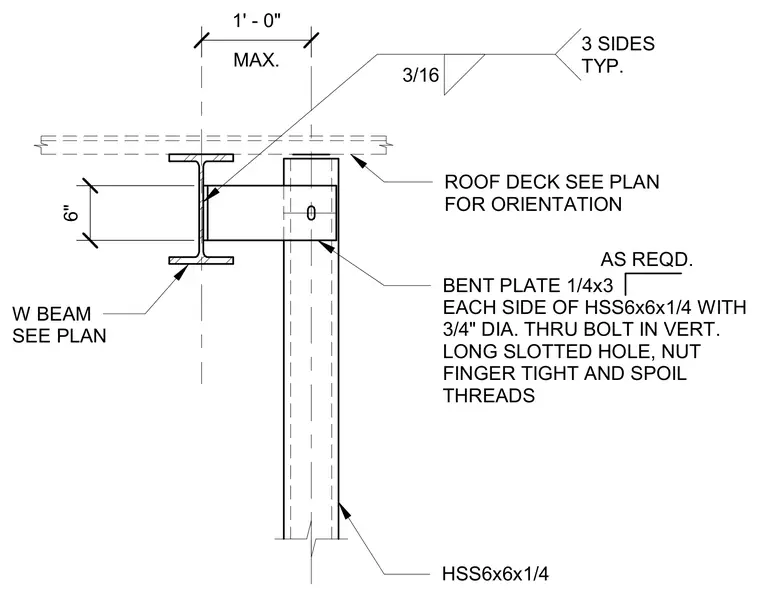

An HSS6x6x1/4 structural steel column connects to a wide flange beam positioned per plan beneath a roof deck. A bent plate measuring 1/4 inch by 3 inches is welded to each side of the HSS column with a three-sixteenths inch fillet weld on three sides typically. A three-quarter inch diameter through-bolt passes through a vertical long slotted hole in the connection. The nut is left finger tight and the threads are spoiled to ensure a sliding vertical connection.
AS REQD. W BEAM SEE PLAN ROOF DECK SEE PLAN FOR ORIENTATION BENT PLATE 1/4x3 EACH SIDE OF HSS6x6x1/4 WITH 3/4" DIA. THRU BOLT IN VERT. LONG SLOTTED HOLE, NUT FINGER TIGHT AND SPOIL THREADS HSS6x6x1/4 6" MAX. 1' - 0" 3/16 3 SIDES TYP.
