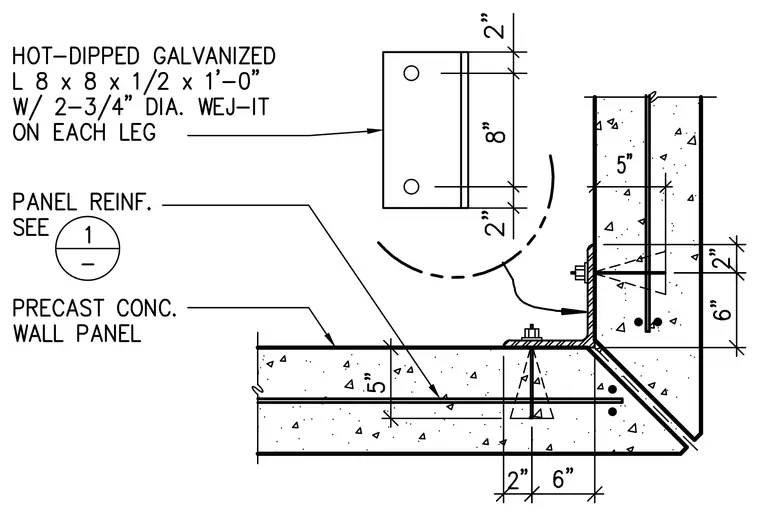

Precast concrete wall panels meet at a corner joint tied together by a hot-dipped galvanized 8x8x1/2 inch angle measuring 1 foot 0 inches long. The angle is secured to each concrete panel leg using two 3/4 inch diameter Wej-It expansion anchors. Panel reinforcement is detailed per sheet 1, and the concrete wall panels measure 5 inches in thickness.
