Structural · S-X2SVY

Beveled Shear Tab

Materials

Connections

About this detail

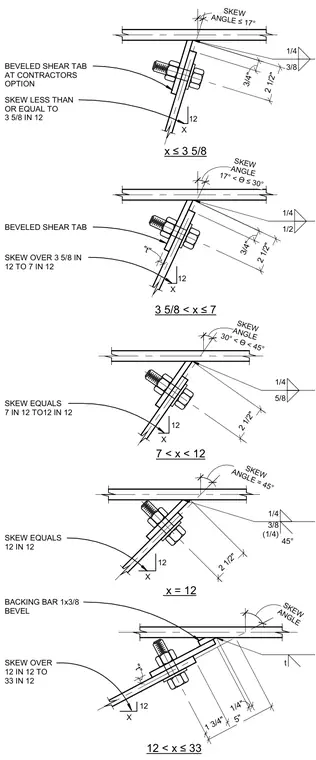

Beveled shear tab connections designed for skewed beam-to-girder framing conditions span five distinct slope ranges. Each connection incorporates a shear tab welded to the supporting member and bolted to the web of the framing beam using standard structural bolts and nuts. The configurations address skew angles from less than or equal to 3.75 inches in 12 up to 33 inches in 12, with specific plate thicknesses, weld sizes, and backing bars detailed for each angular increment. Fillet weld sizes of one-quarter inch, three-eighths inch, one-half inch, and five-eighths inch are specified depending on the severity of the skew angle and plate geometry. Dimensioned clearances include standard edge distances and back-of-plate offsets such as three-quarters of an inch and two and one-half inches.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
