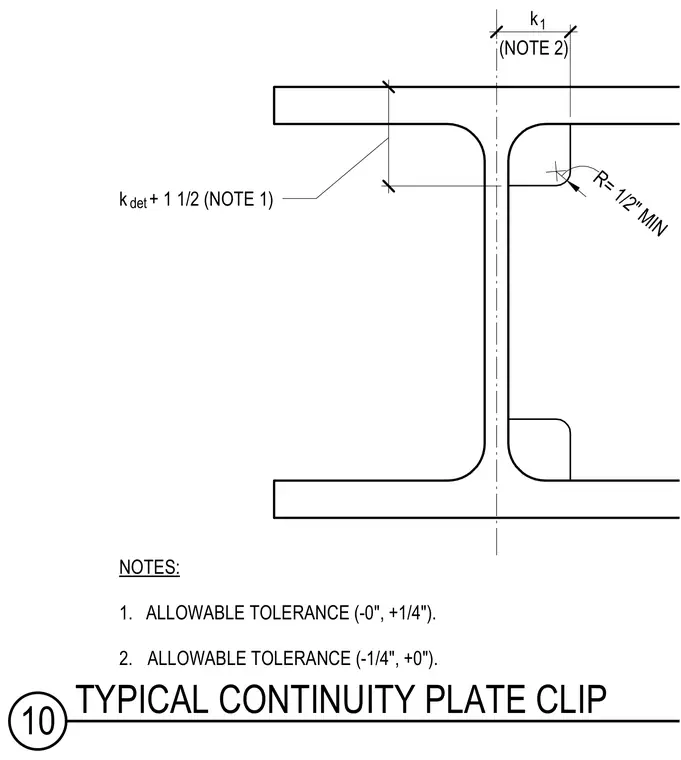

A steel wide-flange section features corner cuts on the continuity plate adjacent to the web and flange junctions. A minimum radius of one-half inch is specified for the rounded internal corner cut. Dimensional tolerances are defined with specific allowances of minus zero to plus one-quarter inch and minus one-quarter inch to plus zero.
NOTES: 1. ALLOWABLE TOLERANCE (-0", +1/4"). 2. ALLOWABLE TOLERANCE (-1/4", +0"). 3 1/2" 2 5/8" k (NOTE 2) k + 1 1/2 (NOTE 1) det 1 R= 1/2" MIN 10 TYPICAL CONTINUITY PLATE CLIP
