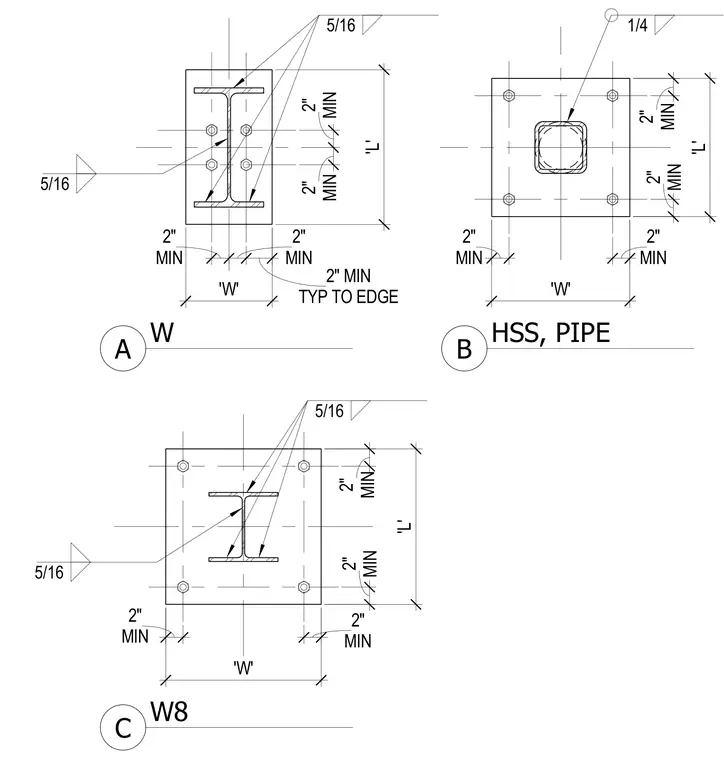

Three distinct steel column base plate configurations are supported on concrete foundations. Detail A features a wide flange column welded to a base plate with five-sixteenths inch fillet welds along the flanges and web, secured by four anchor bolts with a minimum two inch edge distance. Detail B shows an HSS or pipe column centered on a base plate with a one-quarter inch fillet weld and four corner anchor bolts. Detail C displays a W8 column with similar base plate dimensions and five-sixteenths inch fillet welds. All details provide dimensional parameters for plate width and length with standardized edge clearances.
'L' 'W' 'L' 'W' 'L' 1/4 5/16 5/16 5/16 5/16 W A W8 C HSS, PIPE B MIN 2" MIN 2" MIN 2" MIN 2" MIN 2" MIN 2" MIN 2" MIN 2" MIN 2" MIN 2" 'W' MIN 2" MIN 2" TYP TO EDGE 2" MIN
