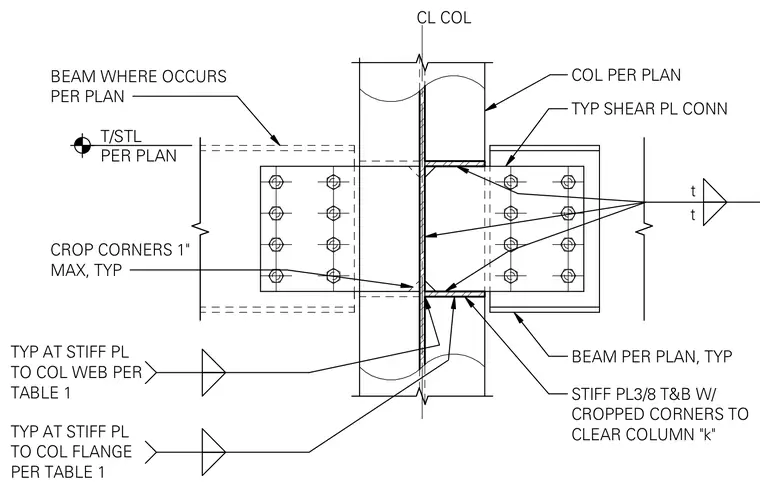

A wide flange beam frames into the web of a wide flange column using a typical shear plate connection with bolts. Three-eighths-inch thick top and bottom stiffener plates are welded to the column flanges and web, featuring cropped corners to clear the column k-distance. Stiffener plate welds are sized per the engineering table. The beam flanges and web align with top of steel elevations per plan.
CL COL COL PER PLAN TYP SHEAR PL CONN BEAM PER PLAN, TYP CROP CORNERS 1" MAX, TYP STIFF PL3/8 T&B W/ CROPPED CORNERS TO CLEAR COLUMN "k" t t BEAM WHERE OCCURS PER PLAN TYP AT STIFF PL TO COL FLANGE PER TABLE 1 T/STL PER PLAN TYP AT STIFF PL TO COL WEB PER TABLE 1
