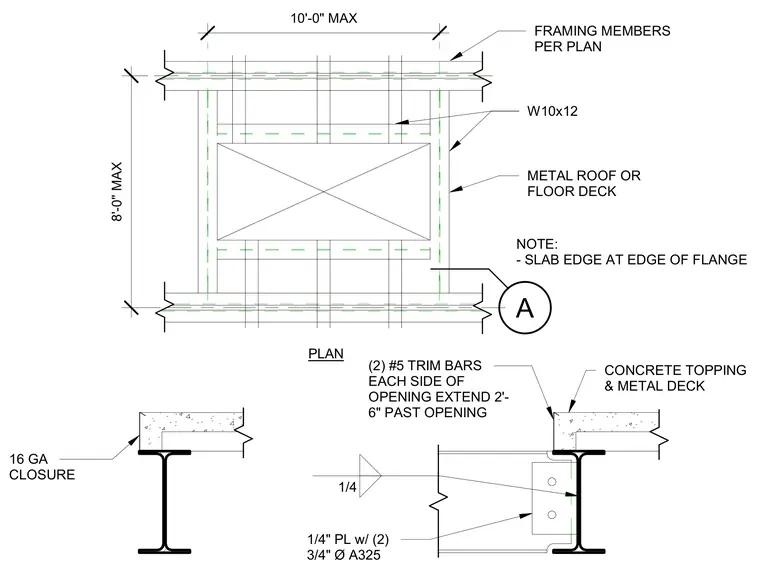

This structural plan detail shows framing members sized per plan surrounding an opening in a concrete topping and metal deck assembly. Framing consists of W10x12 steel beams with a slab edge positioned at the edge of the beam flange. Openings are reinforced with two number five trim bars on each side extending two feet six inches past the opening. A one-quarter-inch plate connects framing using two three-quarter-inch diameter A325 bolts with a one-quarter-inch fillet weld, and a sixteen-gauge closure is provided at the slab edge.
PLAN 1/4 FRAMING MEMBERS PER PLAN W10x12 METAL ROOF OR FLOOR DECK CONCRETE TOPPING & METAL DECK (2) #5 TRIM BARS EACH SIDE OF OPENING EXTEND 2'- 6" PAST OPENING 1/4" PL w/ (2) 3/4" Ø A325 16 GA CLOSURE NOTE: - SLAB EDGE AT EDGE OF FLANGE 10'-0" MAX 8'-0" MAX A
