Post-Tensioned Slab Tendon Anchor Pocket Detail

Materials

Elements

Floors / Slabs Anchors / Embeds Reinforcing

About this detail

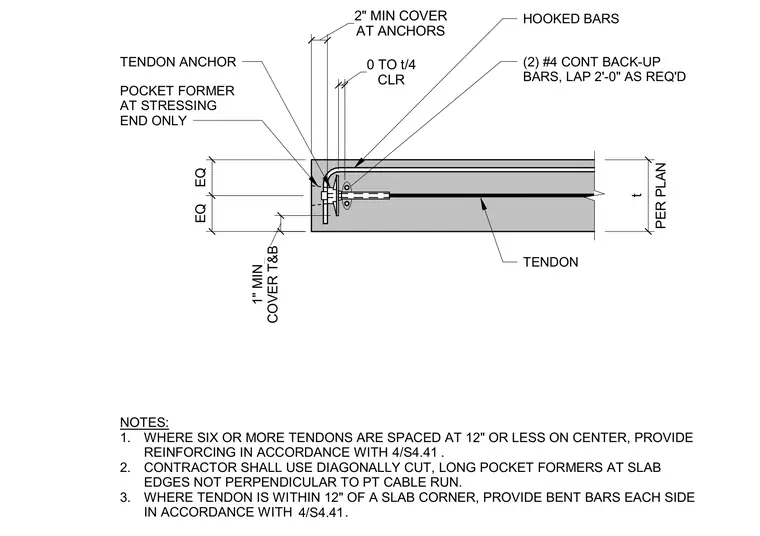

Post-tensioned concrete slab edge featuring a tendon anchor with a pocket former at the stressing end only. Two number four continuous backup bars are provided with a two-foot lap as required. A two-inch minimum cover is maintained at anchors, with a one-inch minimum cover top and bottom. Tendon clearance ranges from zero to t over four, with equal spacing per plan.
