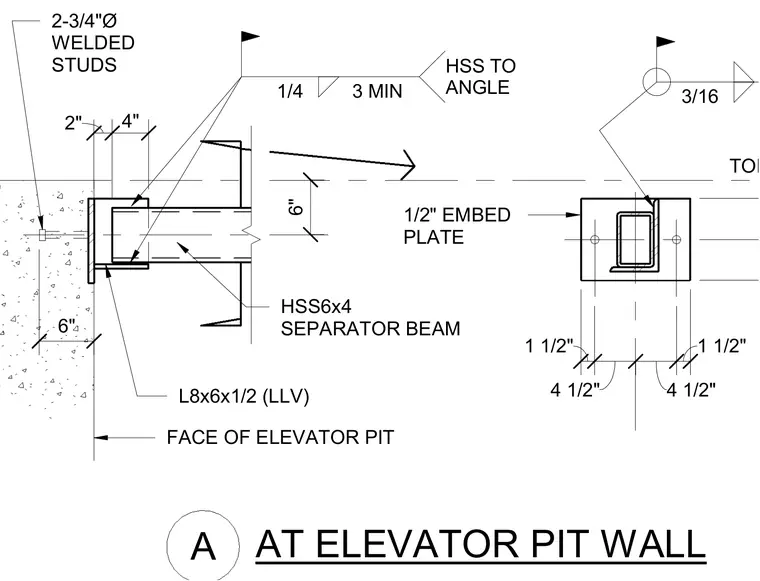

An HSS6x4 separator beam connects to a concrete elevator pit wall via a structural steel angle and an embedded plate. The concrete wall is anchored with two three-quarter-inch diameter welded studs. An L8x6x1/2 angle supports the HSS member, secured with a one-quarter-inch fillet weld with a three-inch minimum length. A three-sixteenth-inch weld connects the HSS to the angle. The connection transfers structural loads from the separator beam directly into the elevator pit wall embed plate.
TOP OF CONC FACE OF ELEVATOR PIT HSS6x4 SEPARATOR BEAM L8x6x1/2 (LLV) 1/2" EMBED PLATE 2-3/4"Ø WELDED STUDS AT ELEVATOR PIT WALL A 2" 4" 6" 6" 1 1/2" 4 1/2" 4 1/2" 1 1/2" 3/16 1/4 3 MIN HSS TO ANGLE
